规格Specification

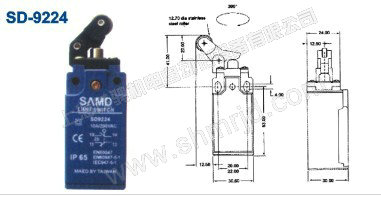

型号           Model	SD	9111	9112	9124	9104	9224	9108	9167	9166	9168	9191
操作力          Operating force	OF(最大） (Max.)	700g	700g	700g	700g	700g	500g- cm	100g	100g	100g	500g- cm
回弹力          Release force	RF(最小） (Min.)	200g	200g	200g	100g- cm	200g	100g- cm	40g	40g	40g	100g- cm
前预行程         Pre-travel	PT(最大） (Max.)	1.8mm	1.8mm	1.8mm	20°	1.8mm	20°	30mm	30mm	30mm	20°
角发位置        Tripping position	TP(±10%)	2.0mm	2.0mm	2.0mm	22.5°	2.0mm	22.5°	22.5mm	22.5 mm	22.5 mm	22.5°
行程移动分辨率  Movement difference	MD(最大） (Max.)	1.2mm	1.2mm	1.2mm	10°	1.2mm	10°	14°	14°	14°	10°
角后行程        Over travel	OT(最小） (Min.)	4.0mm	4.0mm	4.0mm	75°	4.0mm	75°	20mm	20mm	20mm	75°
累积总行程      Total travel	IT(最小） (Min.)	5.8mm	5.8mm	5.8mm	95°	5.8mm	95°	50mm	50mm	50mm	95°
摇臂转换分角度  Rotary indexing					22.5°		22.5°				22.5°

特性Characteristics
双断开机械功用  Double break Mechnism	INO+INC Force break snap action 强迫断开快速机芯
额定电压/电流   Rated Voltsge/Current	10(4)A,125,250VAC/6(2)A
按触电阻        Contact Resistance	initial<10mΩ ,after testing<30mΩ
绝缘电阻        Insultation Voltage	Min.100mΩ at 500VCD
电介强度        Dielectric Strength	AC 2000VAC/Minute for exposed, metal/terminals, ground and between opposite poles
电性寿命        Elctrical Life	500,000 at 10A 250VAC Resistive
机械寿命        Mechanical Life	20,000,000
操作速度        Operating Speed	120 Cyles/minute
防水防尘能力    Degree of Protection	IP65(防压力水柱级）
上升温度        Ambient Temperature                 Rised	Max 30℃ over ambient temperature at rated voltage/current
合乎标准        Comformed Standards	Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660
操作温度        Operating Temperature                 Rised	m-25℃～+80℃
保存温度        Storage Temperature	m-25℃～+80℃
湿度            Humdity	95R.H Max(No dewing)
动擎系数        Shock Resistance	Free position 10G Overtravel position 30G
振动频率        Vibration Frequency	55Hz Max
端自螺丝扭力    Terminal screw Locking                 Force	6-8 kgf-cm
其他螺丝扭力    Other Forces	Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mouring 50-60 kgf/cm
裸铜线尺寸      Bare Wire Gange	￠ 2Max
电线尺寸        Cable Diameter	￠ 12Max
